Intermittent Ball Mill

ceramic ball mill (5).png

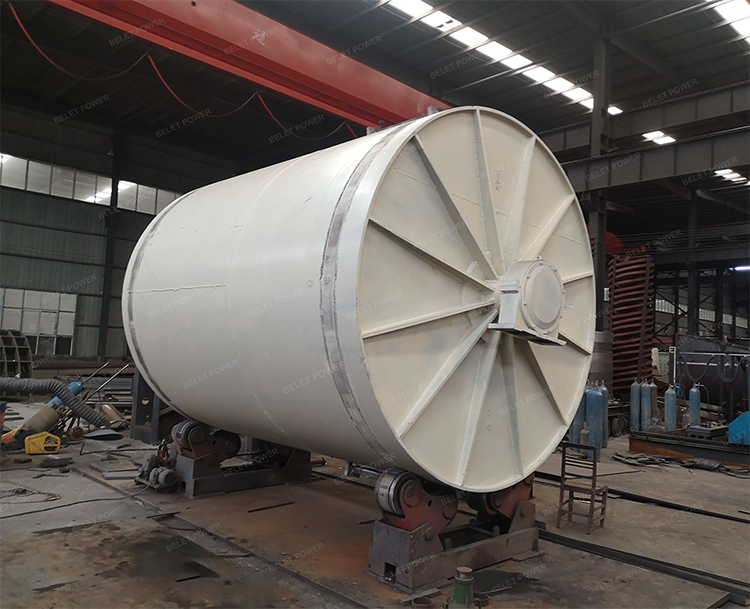

Our batch ceramic ball mill is purpose-built for the fine grinding of ceramic raw materials including kaolin, feldspar, and quartz sand.

Designed for wet/dry batch operation, this machine delivers consistent particle size distribution, zero iron contamination, and exceptional durability, making it ideal for small-to-medium ceramic production lines and custom material processing.

moinho de bolas cerâmico (3).png

Key Technical Highlights

High Alumina Ceramic Lining:

Prevents iron contamination, preserving the purity of ceramic glazes and body materials.

Adjustable Batch Capacity:

0.05–15 tons per batch, matching diverse production scales.

moinho de bolas cerâmico (2).png

Energy-Efficient Drive System:

Reduces power consumption by 15–20% compared to conventional mills, with stable low-noise operation.

Wet/Dry Dual Compatibility:

Versatile for both slurry preparation (kaolin) and dry powder grinding (feldspar/quartz).

Precision Particle Control:

Achieves fineness down to 200–325 mesh via adjustable grinding time, meeting strict ceramic industry standards.

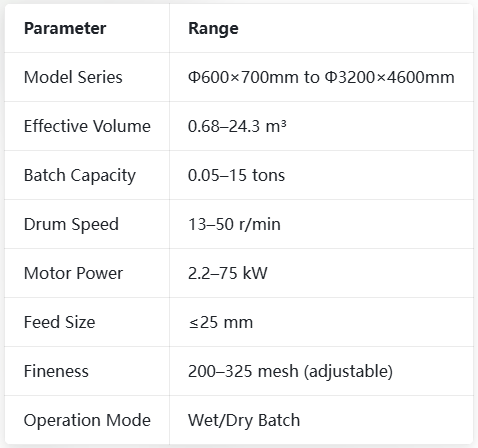

Technical Specifications

Internal Structure

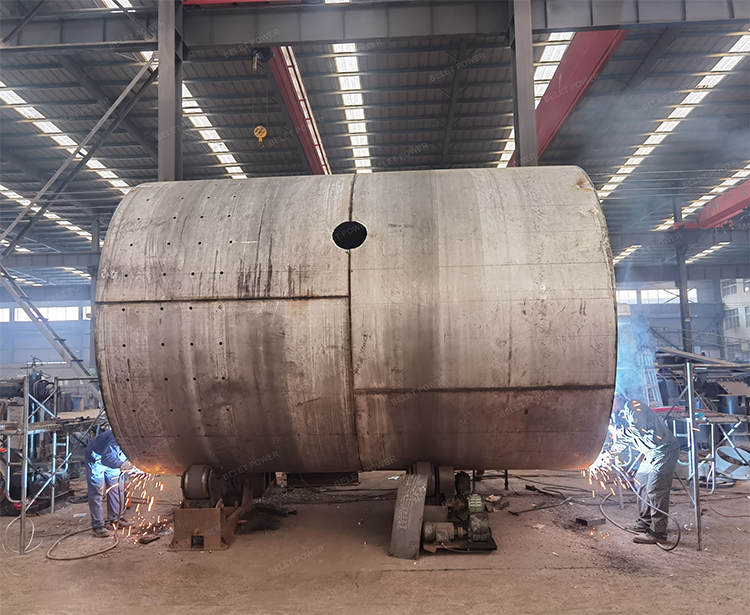

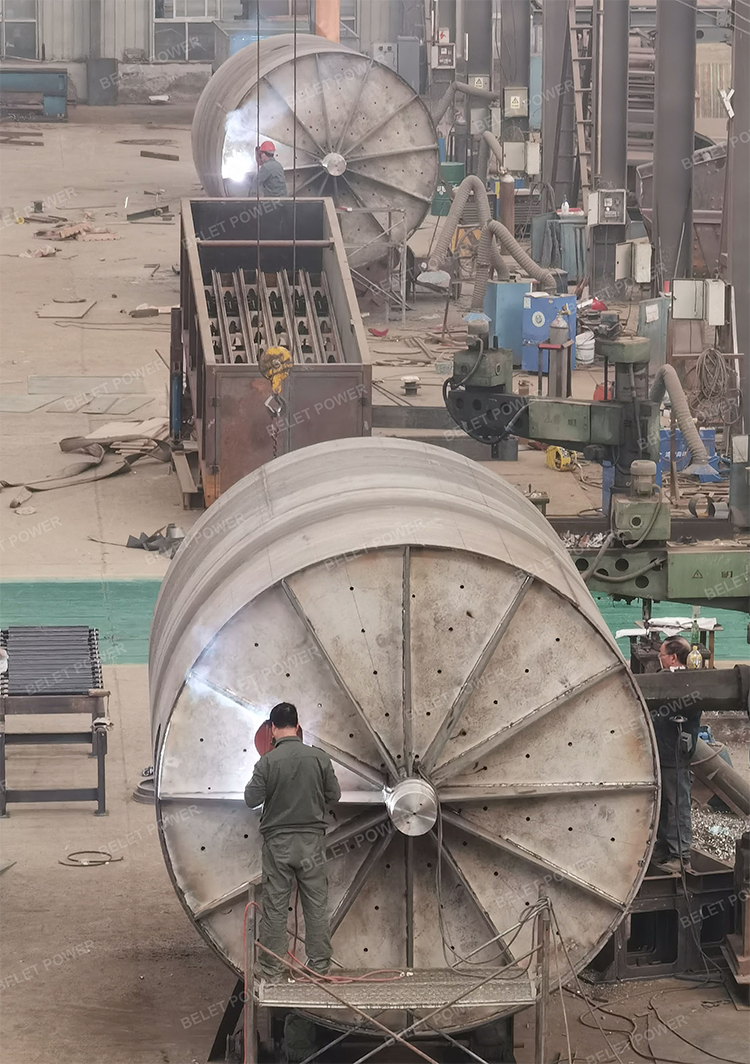

Rotating Cylinder: Heavy-duty welded steel shell with wear-resistant ceramic lining.

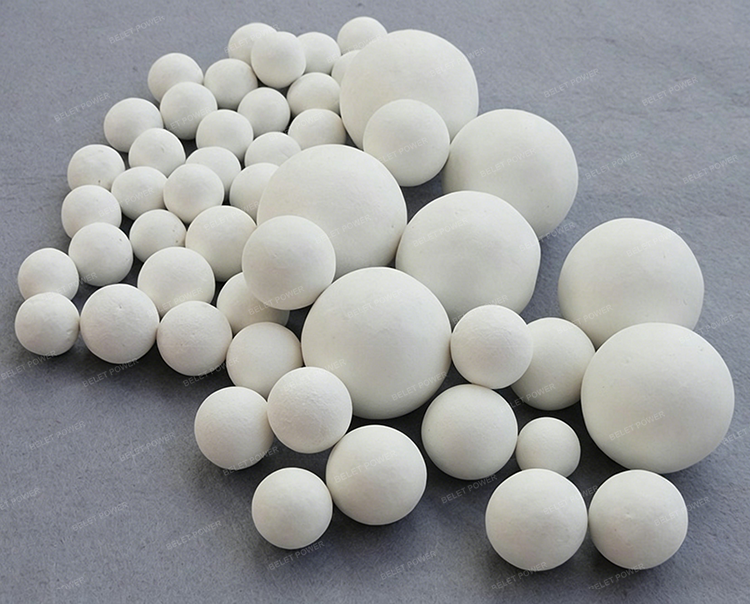

Grinding Media: High-alumina ceramic balls (92% Al₂O₃) or natural flint pebbles, selected based on material hardness.

kaolin grinding machine.png

Drive Assembly: Motor + reducer + coupling system, ensuring smooth and reliable rotation.

Support Frame: Robust steel pedestal for stable operation and easy installation.

Control Panel: Optional timer and speed regulator for precise grinding cycle management.

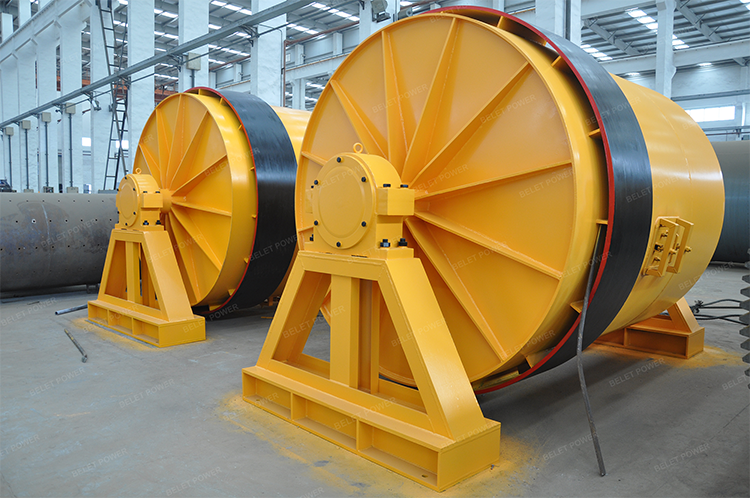

ceramic ball mill (2).png

Why Choose Us?

Customized Solutions: Tailor-made mill sizes and lining materials to match your kaolin/feldspar/quartz processing requirements.

Zero Contamination Guarantee: High-purity ceramic components eliminate iron pollution for premium ceramic products.

ceramic ball mill (3).png

Global After-Sales Support: On-site installation guidance and remote technical assistance for Brazil, Russia, and worldwide clients.

Factory Direct Pricing: Competitive rates with no middlemen, backed by ISO 9001 quality certification.

Proven Track Record: Serving ceramic plants across South America, Russia, and Europe with reliable grinding solutions.

moinho de bolas cerâmico (4).png
