Palm Oil Cake Dryer

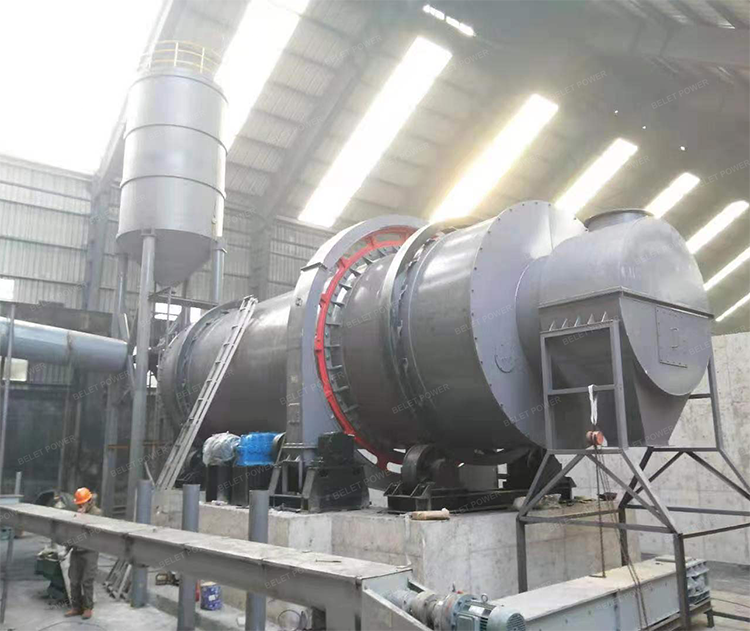

High‑efficiency Palm Oil Cake Dryer is a purpose-built three-pass rotary drying system designed for palm oil mill by-products. It efficiently reduces moisture in high-moisture, sticky palm kernel cake (PKC), palm press fibre, and palm sludge to produce stable, high-quality feed ingredients or biomass fuel.
Built to withstand tropical conditions in Southeast Asia, this dryer delivers consistent results with low operational costs.
Key Technical Highlights
Three-Pass Energy-Saving Structure:

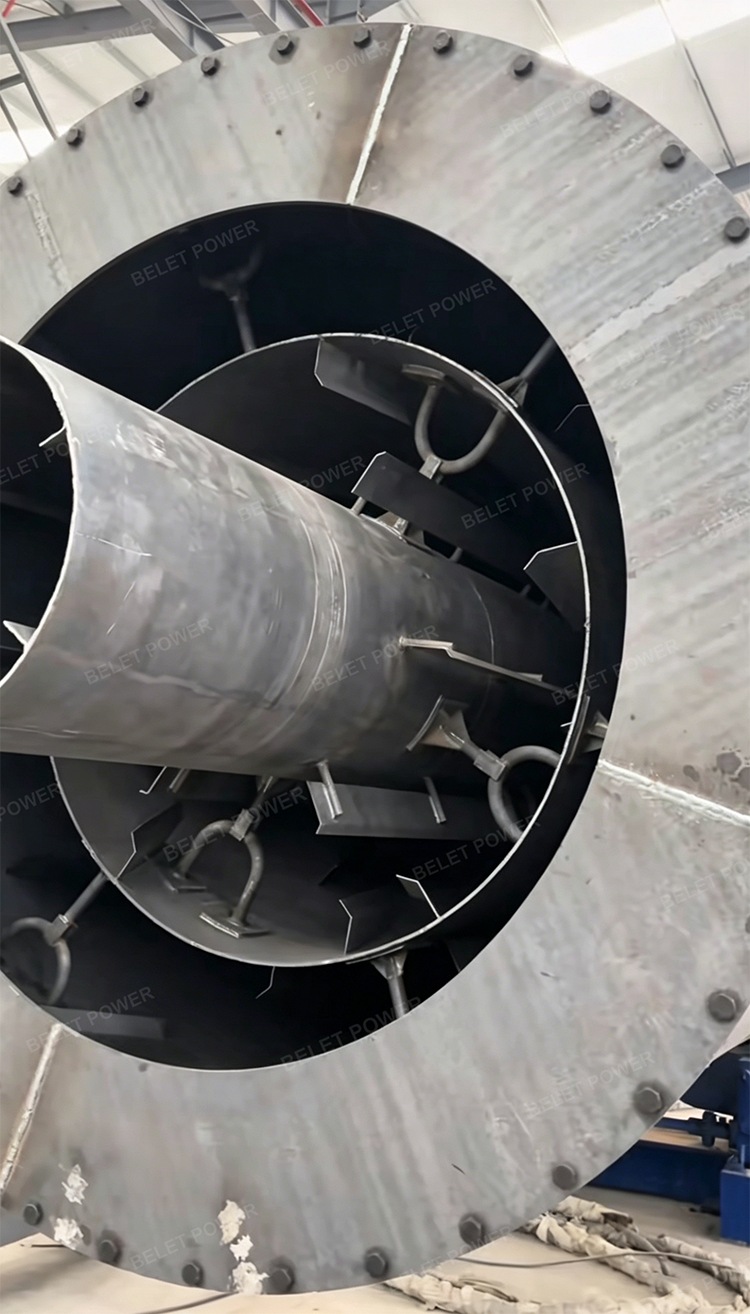

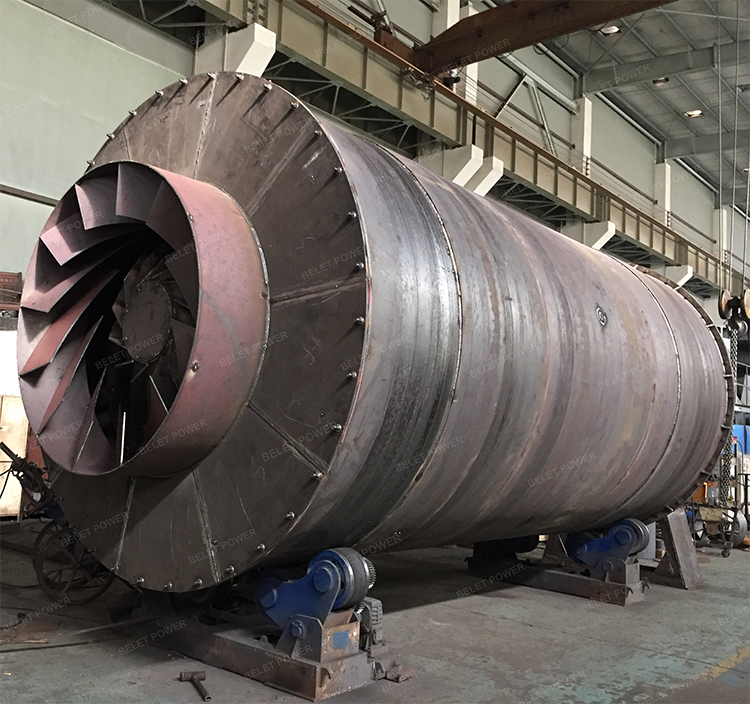

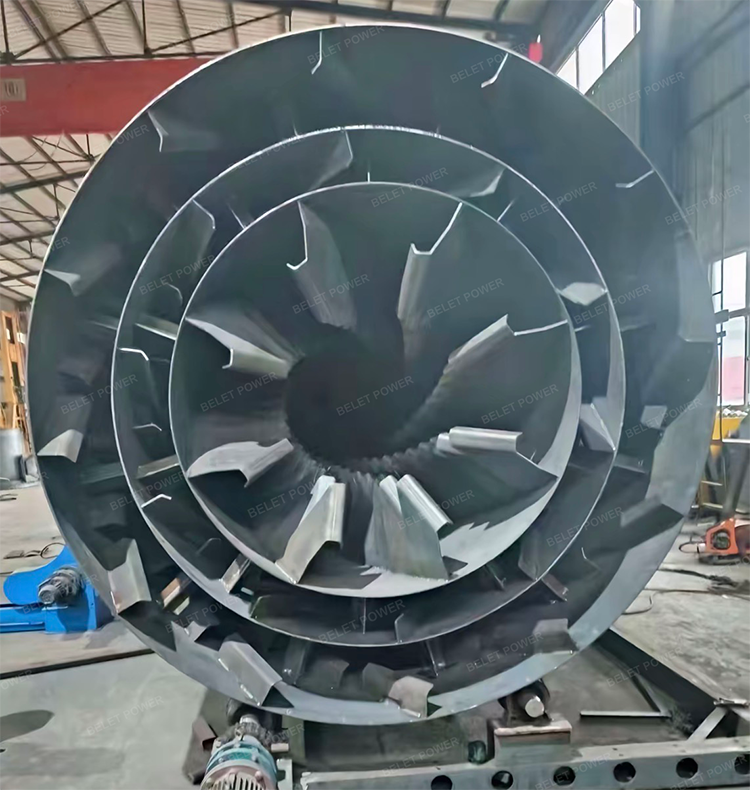

Nested triple-cylinder design maximizes heat exchange, cutting fuel consumption by 30–50% compared to single-pass dryers.
Anti-Caking & Uniform Drying:

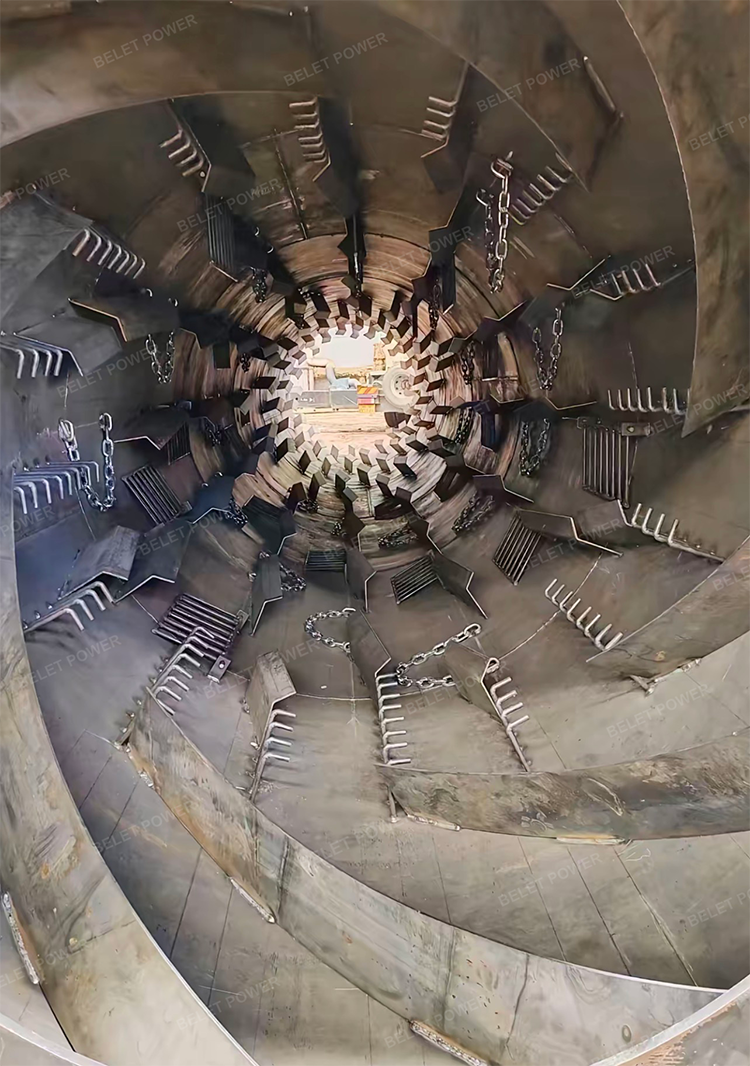

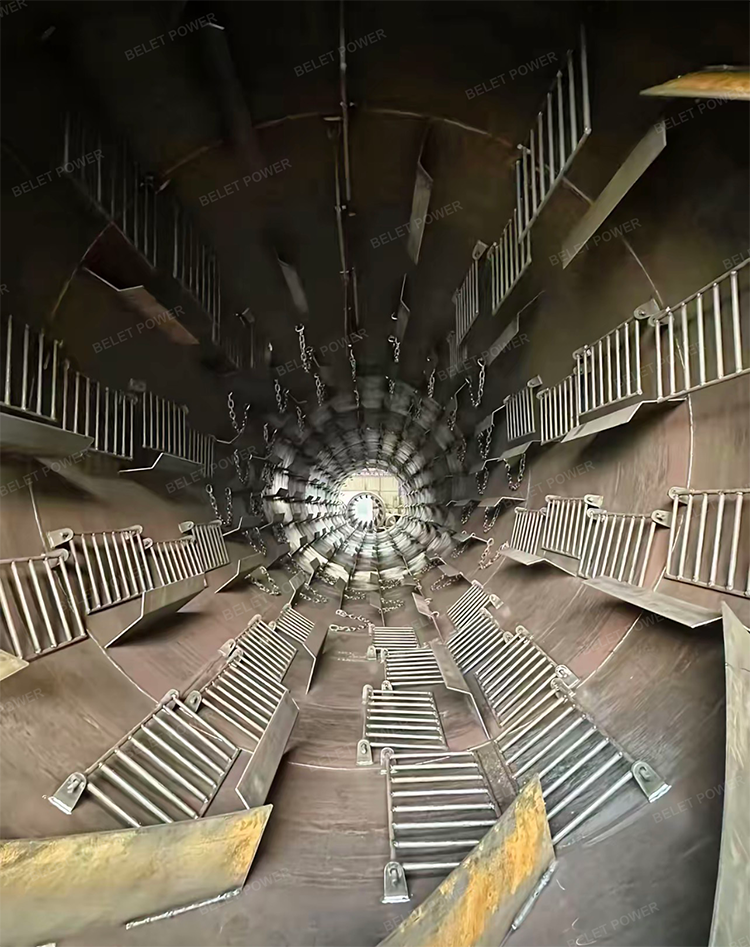

Custom internal lifting flights prevent sticking and ensure even moisture reduction, preserving the nutritional value of palm kernel cake.
High Moisture Adaptability:
Handles initial moisture content up to 60% efficiently, ideal for fresh palm kernel cake from mills.
Multi-Fuel Compatibility:
Supports palm shell, biomass, coal, diesel, and natural gas heating to leverage local, low-cost fuel sources.
Low-Temperature Drying:
Adjustable temperature control (100–350°C) prevents protein degradation, maintaining feed quality.
Corrosion & Tropical Climate Resistant:
Heavy-duty anti-corrosion coatings and dust-proof components withstand high humidity and harsh industrial environments.
Compact Footprint:
60% shorter than equivalent single-pass dryers, saving valuable space in palm oil mills.

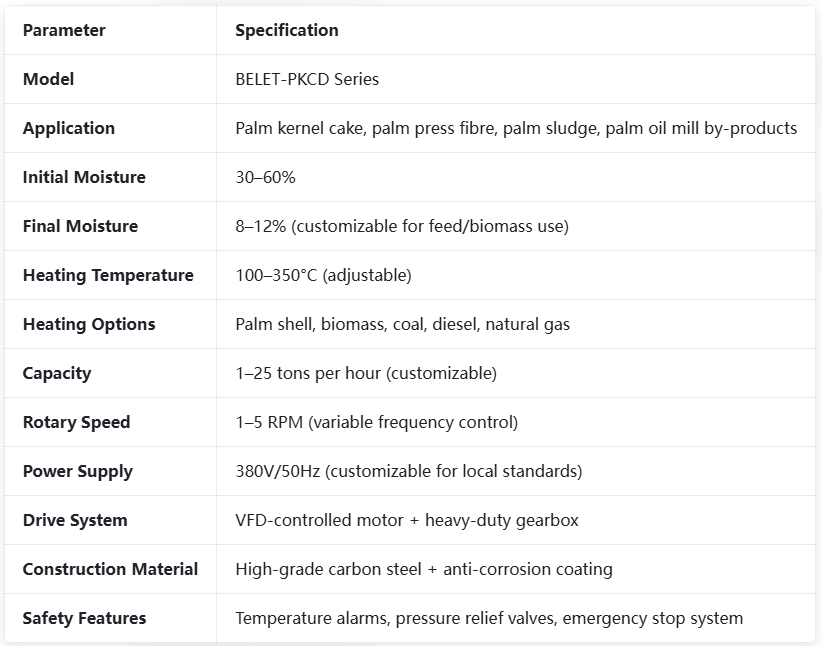

Technical Specifications
Why Choose Us?
PKC-Specific Design: Every dryer is optimized for the unique properties of palm kernel cake—high moisture, stickiness, and tropical operating conditions.
Proven SEA Performance: Hundreds of units operating in Indonesia, Malaysia, and Thailand, built to handle local fuel sources and climates.
Cost-Effective Operation: Triple-pass design lowers fuel costs significantly, turning waste palm shell into a viable energy source.
Turnkey Support: From custom design to installation, commissioning, and operator training, we provide full lifecycle support.
Reliable After-Sales Service: Local spare parts stock and technical support ensure minimal downtime for your palm oil mill.
