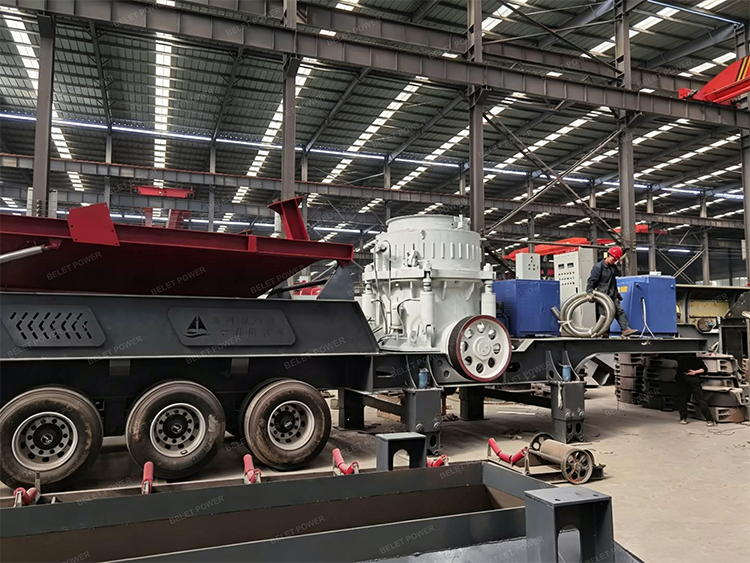

Mobile Cone Crusher Station
Mobile Cone Crusher Station, is for secondary and tertiary crushing of hard rock, granite, basalt, iron ore, and other high-abrasion materials.
As a professional manufacturer of mobile crushing equipment, we focus on technological innovation to solve the core pain points of traditional fixed cone crushers: high installation costs, long deployment cycles, and poor mobility in remote terrains.
Our mobile cone crusher stations are purpose-built for extreme working conditions, excelling in processing high-hardness materials (Mohs hardness 6-9, compressive strength up to 350MPa) with stable performance, uniform finished aggregates, and ultra-low maintenance costs.
Core Technical Highlights:
1. Patented Laminated Crushing System: Superior Particle Shape & High Crushing Efficiency
Our mobile cone crusher is equipped with a patented optimized laminated crushing cavity, leveraging the advanced "material-on-material" crushing principle instead of traditional metal-on-material impact. This design ensures full, uniform squeezing and grinding of materials in the cavity, eliminating over-crushing and boosting crushing efficiency by 30% compared to conventional cone crushers. The finished product features a perfect cubic shape, ultra-low needle-flake content (<5%), and consistent particle size, fully meeting the strict standards for high-grade construction aggregates, railway ballast, and asphalt concrete.
Fitted with high-chromium molybdenum vanadium alloy wear-resistant liners, our crushers offer 60% higher wear resistance than standard manganese steel liners, extending service life by 12-18 months and reducing liner replacement frequency by 40%. With a maximum feed size of 500mm and a crushing ratio of up to 1:18, the station can directly process raw ore into high-quality 5-40mm finished products in one step, eliminating the need for secondary crushing and saving significant time and labor costs.
2. Intelligent Hydraulic Control System: Safe Operation & One-Click Adjustment
Integrated with a PLC intelligent hydraulic control system, our mobile cone crusher supports one-key start/stop, stepless adjustment of the discharge gap (5-40mm), and real-time monitoring of all key operating parameters (temperature, load, oil pressure, vibration, etc.). The built-in hydraulic overload protection device automatically lifts the fixed cone to discharge uncrushable foreign objects (such as iron blocks) in 0.3 seconds, preventing equipment damage and ensuring 24/7 stable operation in harsh mining environments.
The system also features a fault self-diagnosis function that can quickly identify 20+ common faults (e.g., bearing overheating, hydraulic leakage, liner wear) and display targeted maintenance suggestions, reducing unplanned downtime by 60%. A linked thin-oil lubrication system ensures all core components (eccentric shaft, bearings) are fully lubricated at all times, further extending the equipment's service life.
3. Heavy-Duty Integrated Mobile Chassis: All-Terrain Adaptability & Rapid Deployment

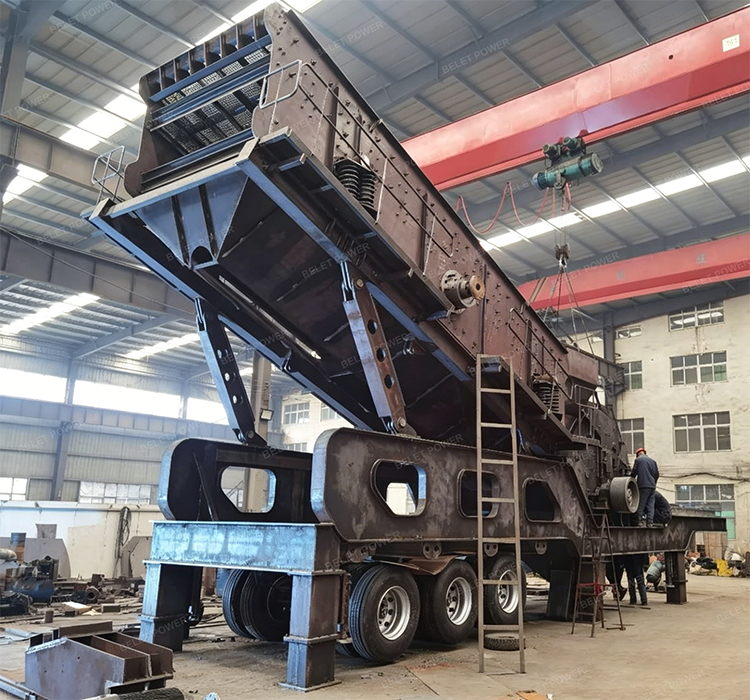

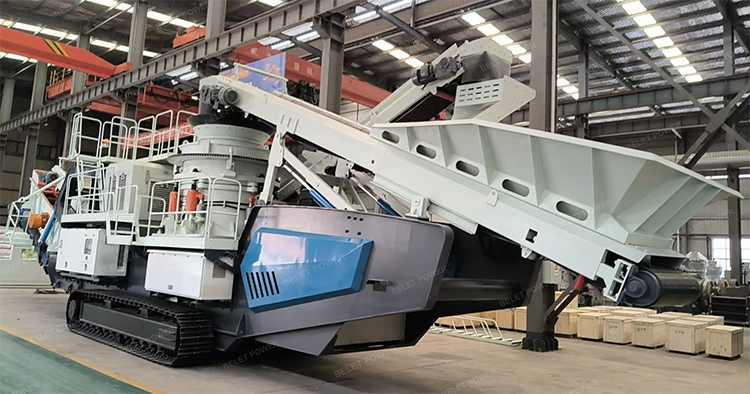

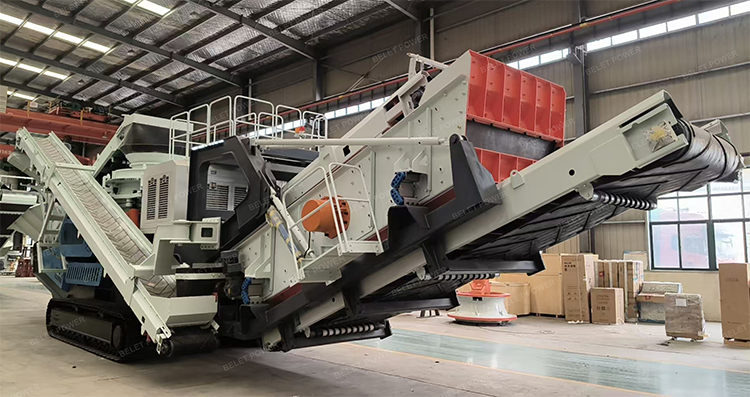

Adopting a one-piece heavy-duty steel integrated chassis design (wheeled type, with tracked options available), our mobile cone crusher station eliminates the need for complex concrete foundations and disassembly during transfer. The wheeled chassis is equipped with 3-axle heavy-duty tires, hydraulic suspension, and a maximum travel speed of 28km/h, making it ideal for long-distance transportation between job sites. The optional tracked model features a low-ground-pressure crawler system with a 30° climbing capacity, easily navigating uneven, muddy, or remote terrains common in African mines and Southeast Asian mountainous areas.
Both models can be fully deployed in ≤2 hours on-site, saving 30-60 days of foundation construction time compared to fixed crushing plants. The integrated hydraulic outriggers enable quick leveling and stable operation, realizing "on-site crushing, on-site utilization" and reducing material transportation costs by up to 50%.
4. Energy-Saving & Environmental Protection Design: Low Operating Costs & Global Compliance
Equipped with a high-efficiency energy-saving diesel engine (Cummins/Weichai optional) and a variable frequency speed regulation system, our mobile cone crusher reduces fuel consumption by 25% compared to traditional equipment, with a consumption rate of only 25-32L/h (depending on the model). It also supports grid power connection (380V/50Hz) to further cut fuel costs and reduce carbon emissions by 70%, fully complying with EU CE, ISO 9001, and other global environmental protection standards.
The whole machine adopts a sealed dust-proof and noise-reduction structure with a built-in high-efficiency dust collection system, reducing dust emission to ≤50mg/m³ for a clean, safe working environment.
5. Integrated Screening & Crushing Design: One-Stop Production Solution

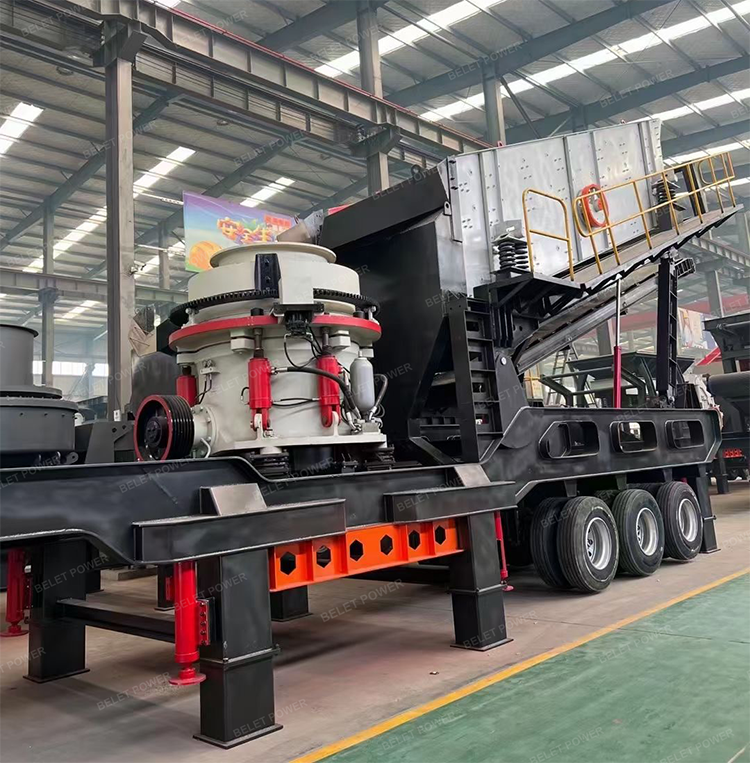

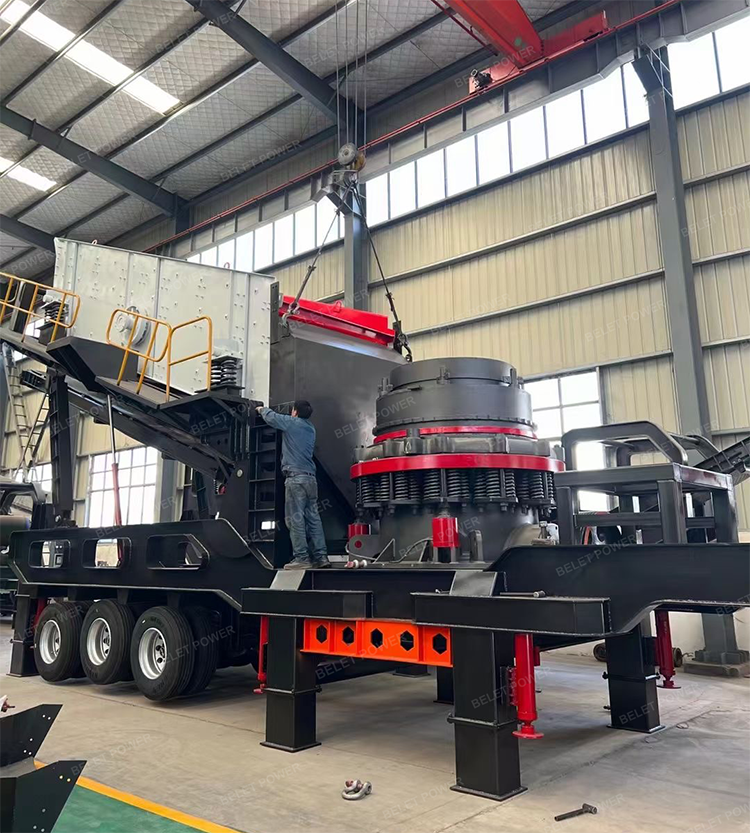

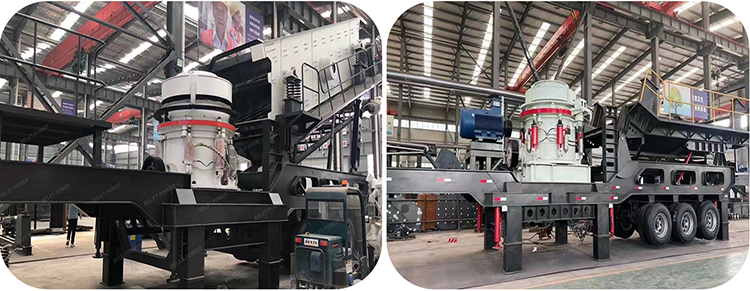

As shown in the images, our mobile cone crusher stations are equipped with an integrated vibrating screen system on the chassis, enabling one-stop "crushing + screening" operations. This design eliminates the need for separate screening equipment, reduces on-site footprint, and ensures finished products meet particle size requirements directly. The screen deck is adjustable to produce multiple aggregate specifications (0-5mm, 5-10mm, 10-20mm, 20-40mm) simultaneously, maximizing production flexibility for diverse project needs.
Wide Application Scenarios:
Our mobile cone crusher stations are the preferred medium and fine crushing equipment for:
- Mining Industry: Secondary/tertiary crushing of granite, basalt, iron ore, copper ore, gold ore, and other high-hardness ores
- Quarrying Industry: Production of high-quality aggregates for construction, road and bridge, and high-speed railway projects
- Infrastructure Construction: On-site crushing of construction waste, concrete, and rock for resource recycling.
- Remote Project Sites: Flexible deployment in high-altitude mines, open-pit mines, and areas with inconvenient transportation.
Whether you are operating a large-scale mine in South Africa, a quarry in Southeast Asia, or an infrastructure project across Africa, our mobile cone crusher stations deliver the perfect combination of power, mobility, and intelligence to maximize your productivity and return on investment.
