Ore Processing Ball Mill in Production

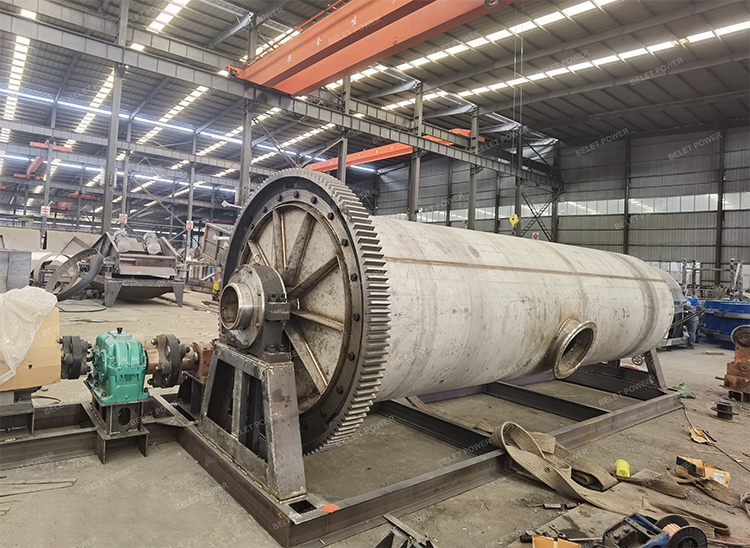

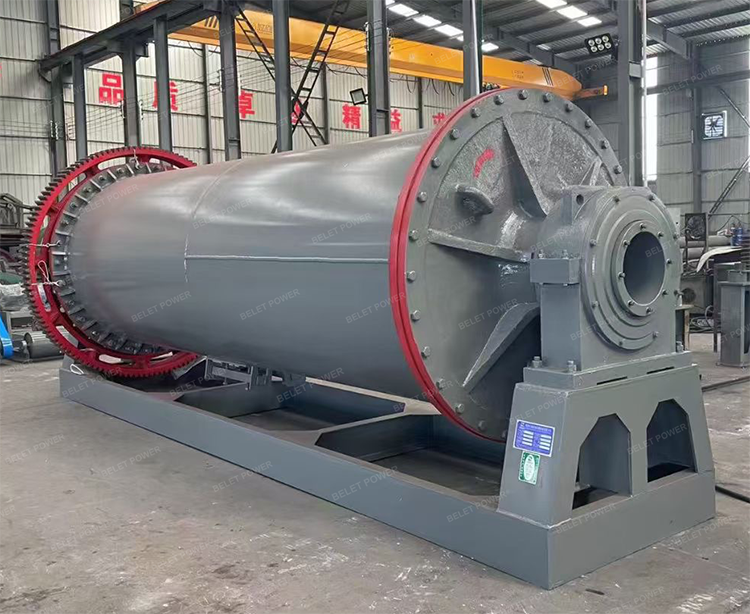

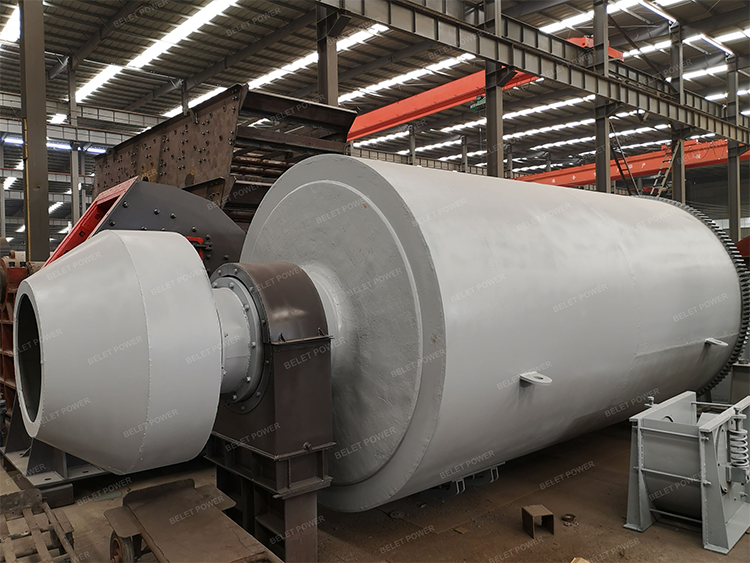

Continuous Ceramic Ball Mill is purpose-built for large-scale, continuous grinding of raw materials for ceramic tiles, porcelain tiles, and sanitaryware.
Designed to process kaolin, feldspar, quartz sand, and other ceramic body materials, this mill eliminates iron contamination, ensures uniform particle size distribution, and supports 24/7 operation to meet the high-volume demands of modern ceramic factories.
Core Technical Highlights
Iron-Free Grinding Technology
Lined with high-alumina ceramic plates and paired with high-purity ceramic grinding media, our mill prevents metal contamination, preserving the whiteness and purity of your ceramic raw materials—critical for producing high-quality tiles and sanitaryware.
Continuous Production Design
Unlike batch ball mills, our continuous model features automatic feeding and discharging systems, enabling non-stop operation. This boosts production capacity by 2–3x compared to traditional mills while reducing labor costs and downtime.
High Precision & Uniform Fineness
Advanced flow-optimized internal structure ensures consistent particle size distribution (D50: 1–5μm), guaranteeing stable and uniform body materials for subsequent forming and firing processes, reducing defects like warping or cracking.
Energy-Saving & Low Maintenance
High-efficiency gear drive system reduces power consumption by 15–20%. Wear-resistant ceramic liners and a modular design minimize maintenance frequency, with easy access for inspection and replacement of key components.
Customizable for Your Process
Available in multiple sizes (custom diameters and lengths) to match your production scale, with options for wet or dry grinding configurations, tailored to the specific requirements of tile or sanitaryware production lines.

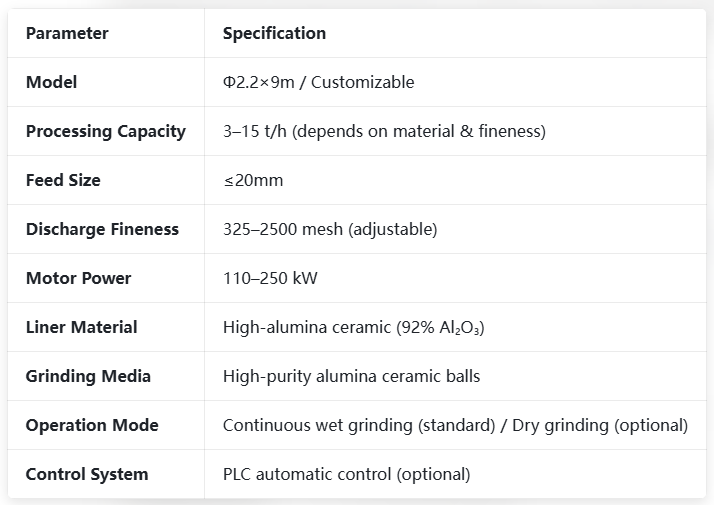

Key Technical Parameters
