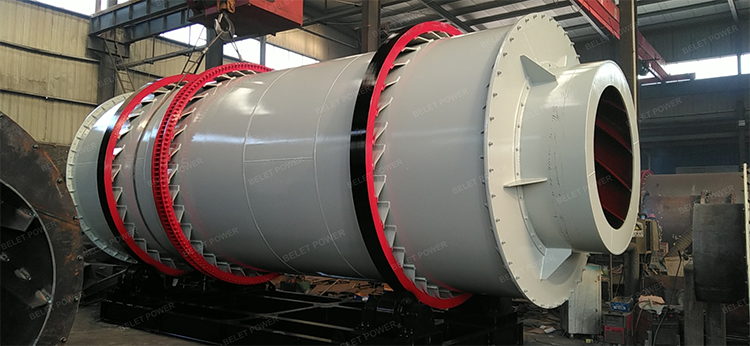

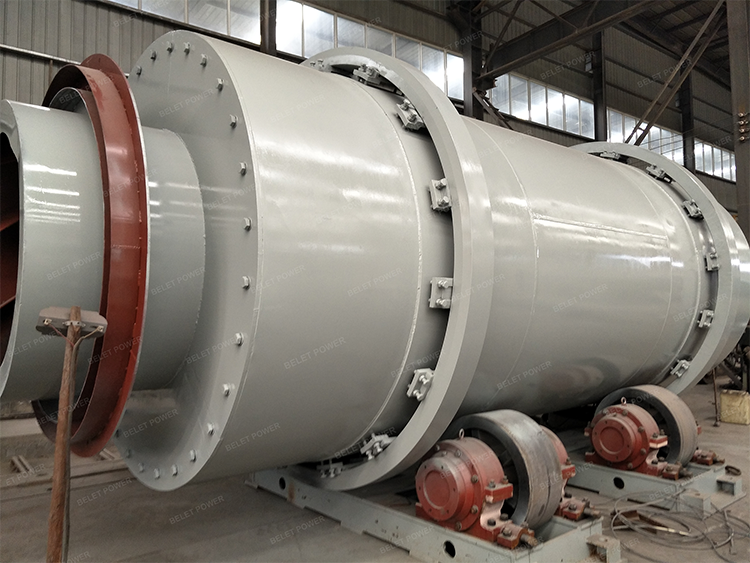

Organic Fertilizer Raw Material Rotary Dryer
Organic fertilizer rotary dryer is a professional industrial drying equipment specially developed for agricultural and livestock organic waste materials. It is widely used for drying chicken manure, cow dung, pig manure, biogas residue, mushroom residue, straw residue, humic acid, and various organic fertilizer raw materials.
Designed to adapt to the harsh climate of Russia and Central Asia (low temperature, dry air, heavy dust), this three-layer nested rotary structure solves common industry pain points such as material sticking, incomplete drying, low output and high energy consumption.
It effectively reduces the moisture of organic waste to the standard required for granulation and packaging, helping customers realize harmless treatment of breeding waste and commercial production of high-quality organic fertilizer, with extremely high economic and environmental benefits.
Core Technical Highlights
1. Anti-sticking & Uniform Drying Structure

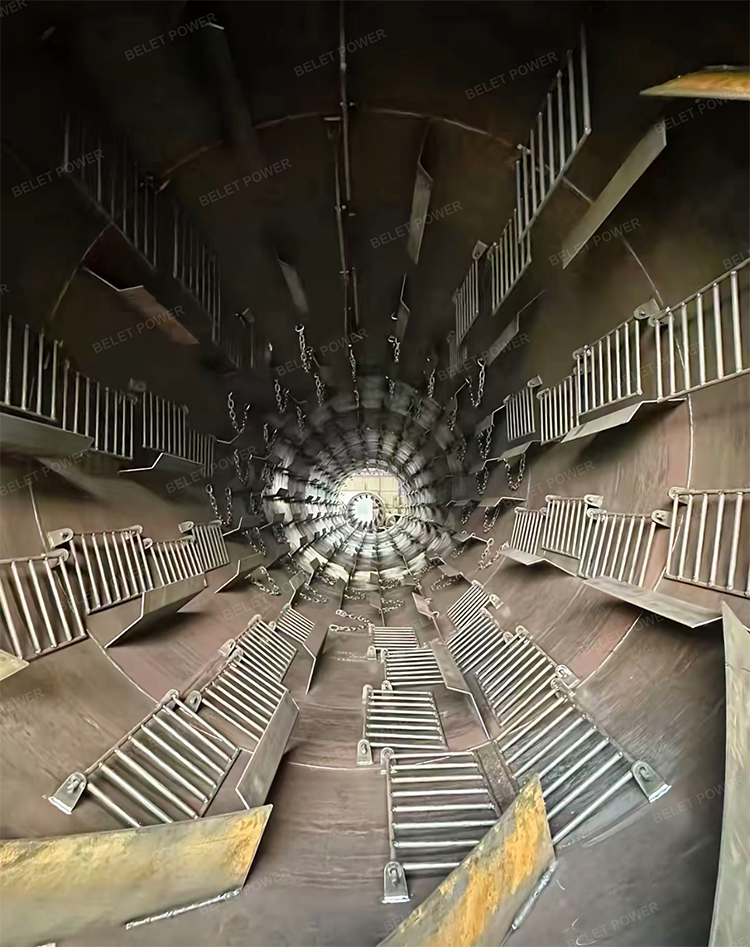

Equipped with customized diversified lifting plates and material breaking devices. For high-viscosity and high-humidity livestock manure, the equipment continuously flips, scatters and disperses materials during operation, completely avoiding cylinder sticking and material agglomeration, ensuring every batch of materials is dried evenly.

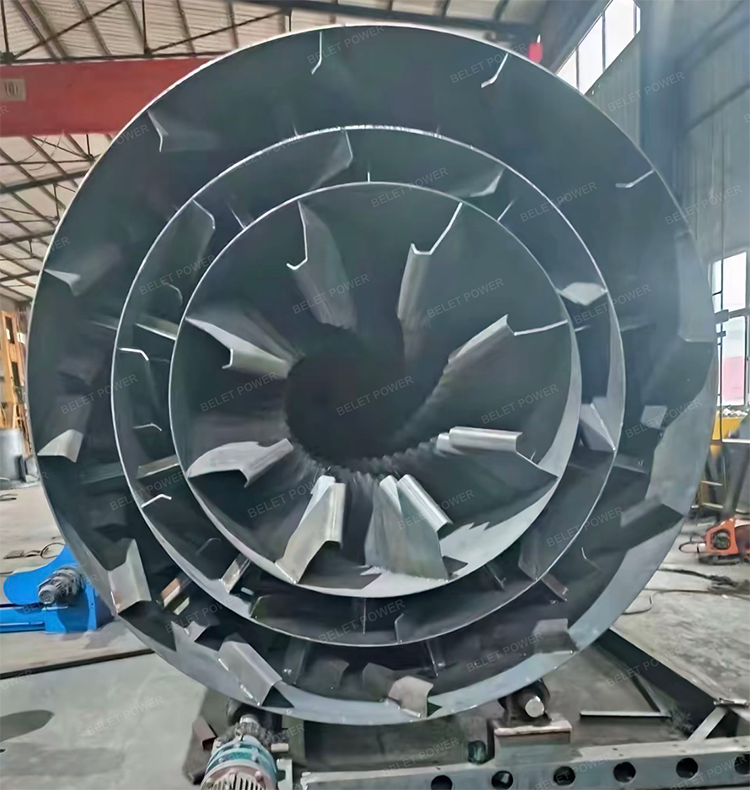

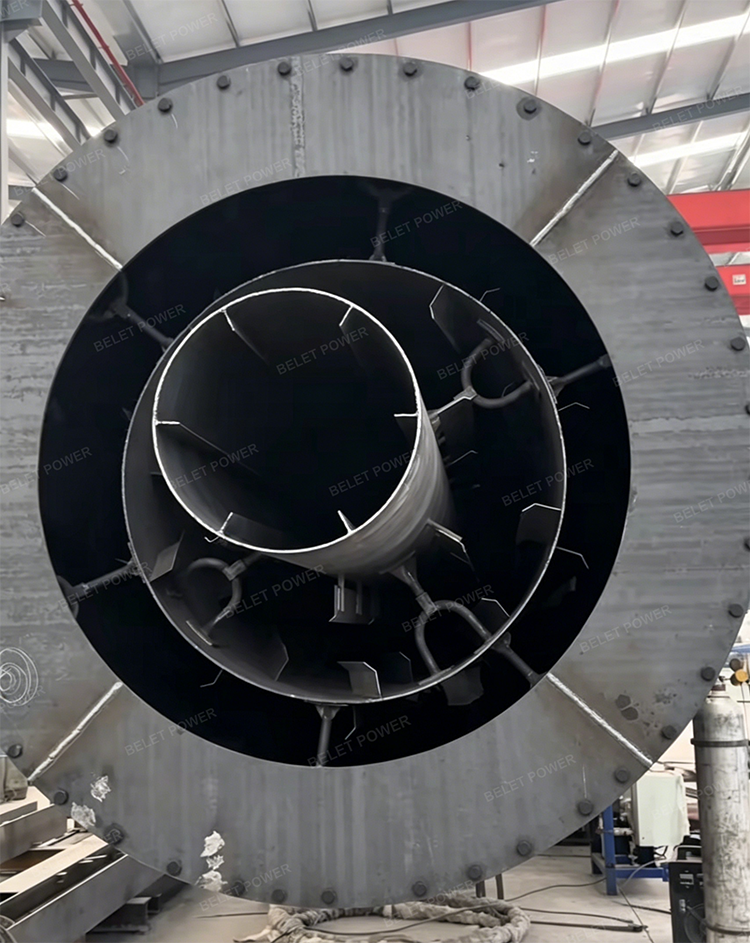

2. Super Energy-Saving Three-pass Design
The three-layer nested cylinder structure makes hot air and materials conduct multi-cycle full contact. Compared with traditional single-cylinder dryers, it saves 30%-45% of fuel consumption, greatly reducing long-term production costs, which is very suitable for large-scale organic fertilizer factories in Central Asia and Russia.
3. Low-Temperature Gentle Drying Technology
Adopts gradient low-temperature drying mode, which retains organic matter, nitrogen, phosphorus and potassium nutrients in livestock manure, effectively guarantees the fertilizer efficiency of finished organic fertilizer, and avoids nutrient loss caused by high-temperature burning.
4. Strong Climate Adaptability
All key components adopt low-temperature resistant and anti-rust materials, specially optimized for cold weather. The equipment can start normally and operate stably in low-temperature environments of -30°C, perfectly adapting to the winter climate of Russia, Kazakhstan, Uzbekistan and other Central Asian countries.
5. Multiple Fuel Compatibility
Supports natural gas, coal, diesel, biomass fuel and straw combustion heating. It can make full use of local cheap agricultural waste and fossil energy in Central Asia, meeting diversified local energy usage habits.
6. Low Maintenance & Long Service Life
Heavy-duty steel structure + thickened anti-corrosion and wear-resistant lining, stable operation, low failure rate, suitable for long-term continuous industrial production, reducing later maintenance and shutdown costs.

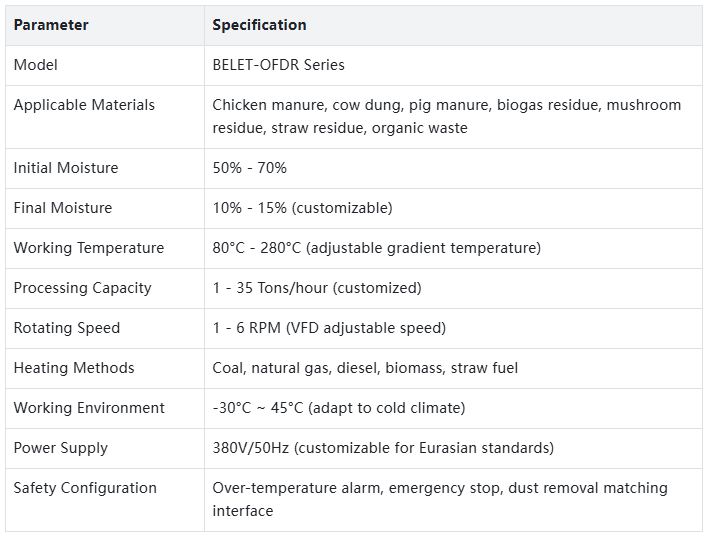

Technical Specifications
Why Choose Us?
Regional Customized Design: All dryers are optimized for the cold and dusty environment of Russia and Central Asia, with low-temperature startup resistance and anti-freezing design to ensure stable year-round operation.
Fertilizer Quality Guarantee: Professional low-temperature drying technology retains maximum organic nutrients, helping customers produce high-grade commercial organic fertilizer and improve product market competitiveness.
Ultra-low Operating Cost: Energy-saving three-pass structure matches local low-cost fuel resources, greatly saving daily fuel and power consumption for production.
Full Lifecycle Turnkey Service: Provide professional scheme design, manufacturing, on-site installation, commissioning and worker training, one-stop solution for organic fertilizer production lines.
Verified Eurasian Market Cases: A large number of equipment are running stably in Russia, Kazakhstan, Uzbekistan and other countries, with mature after-sales support system.
