Box Hammer Crusher

Box-Type Hammer Crusher (also known as Square Box Crusher) not only solves the pain points of traditional crushing equipment such as multi-stage processing, high operating costs, and low adaptability, but also realizes one-time crushing from raw material to finished aggregate, simplifying workflows and maximizing returns.

Core Technical Highlights：

One-Stage Crushing with Large Feed Opening

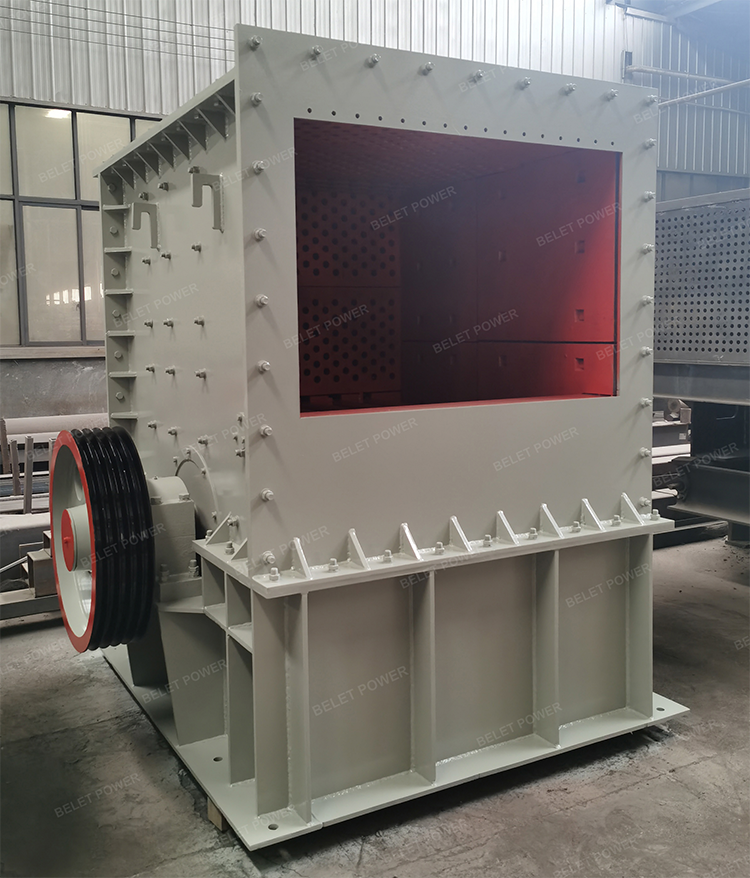

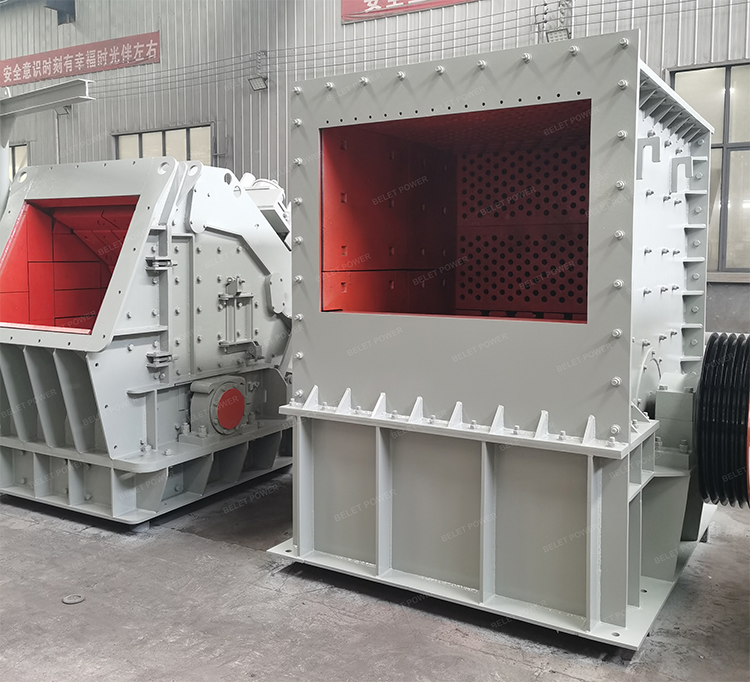

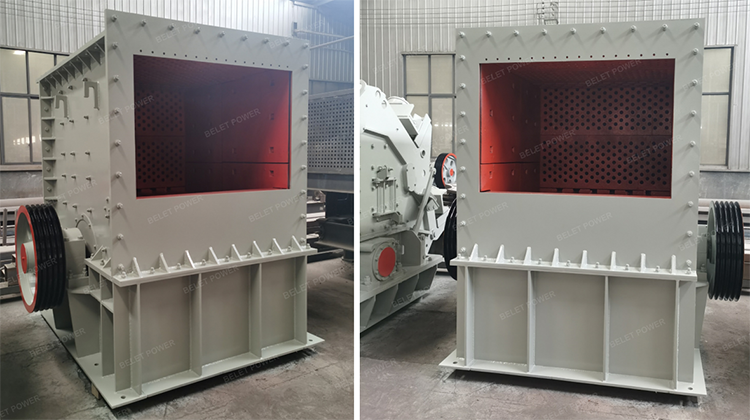

The large square feed opening and deep crushing cavity directly accept bulk materials (up to 1000mm in size), eliminating the need for primary jaw crushing.

The integrated box structure enables repeated impact, collision, and grinding inside the chamber, producing qualified finished aggregates in a single pass.

Heavy-Duty Box Structure & Durable Design

Built with a reinforced welded steel frame, the box body is designed to withstand high impact forces, ensuring stable operation even under heavy loads.

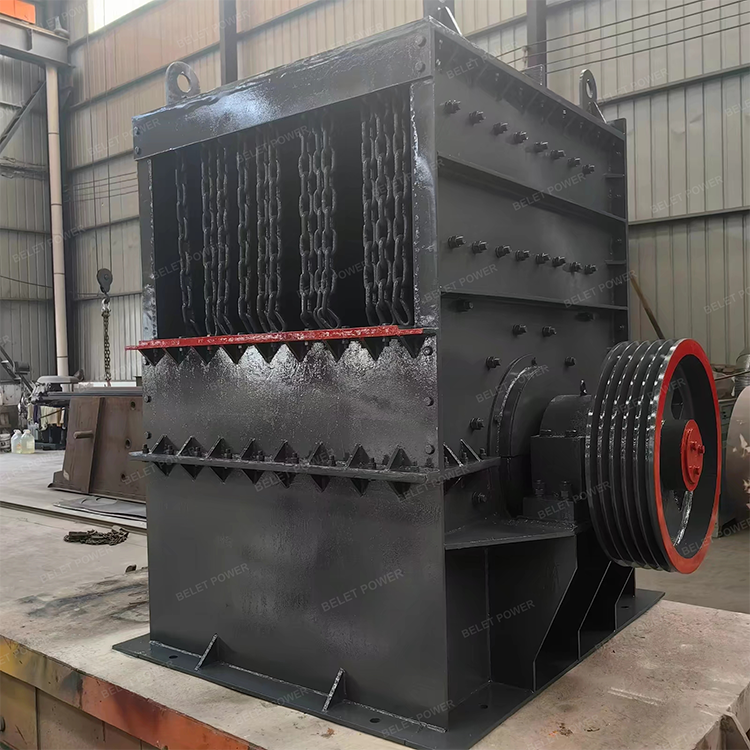

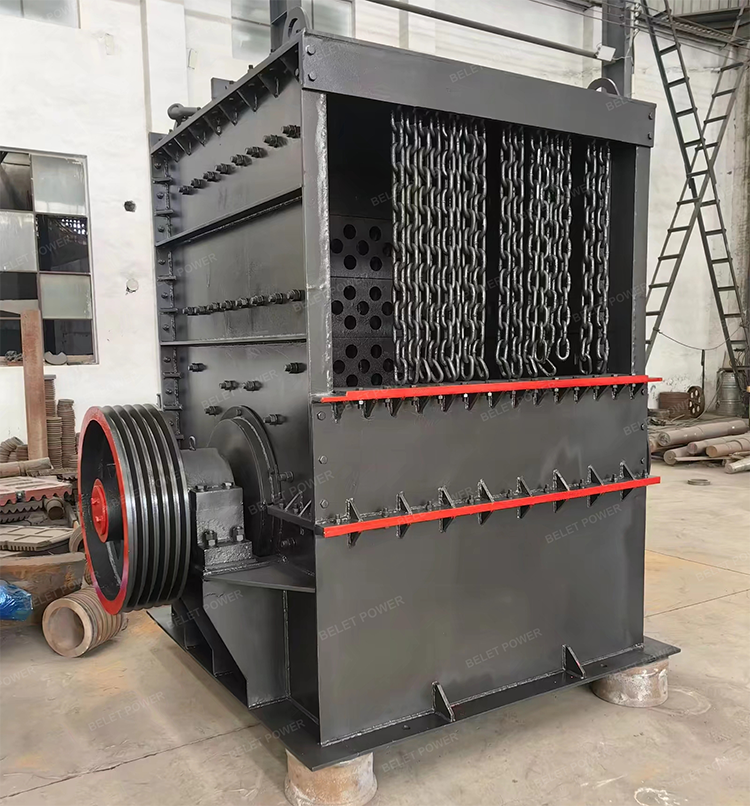

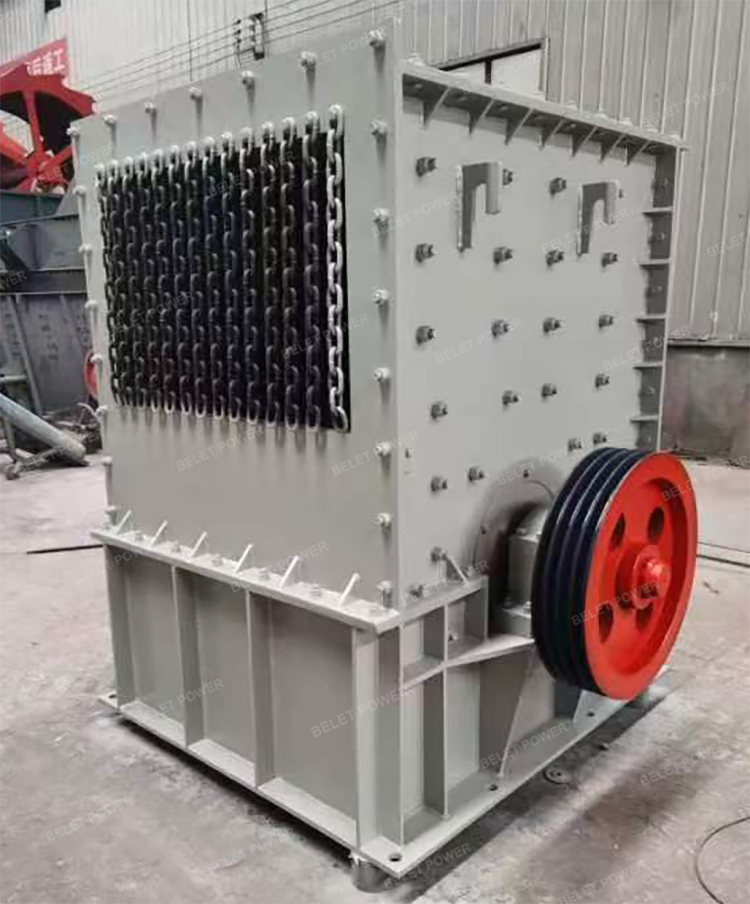

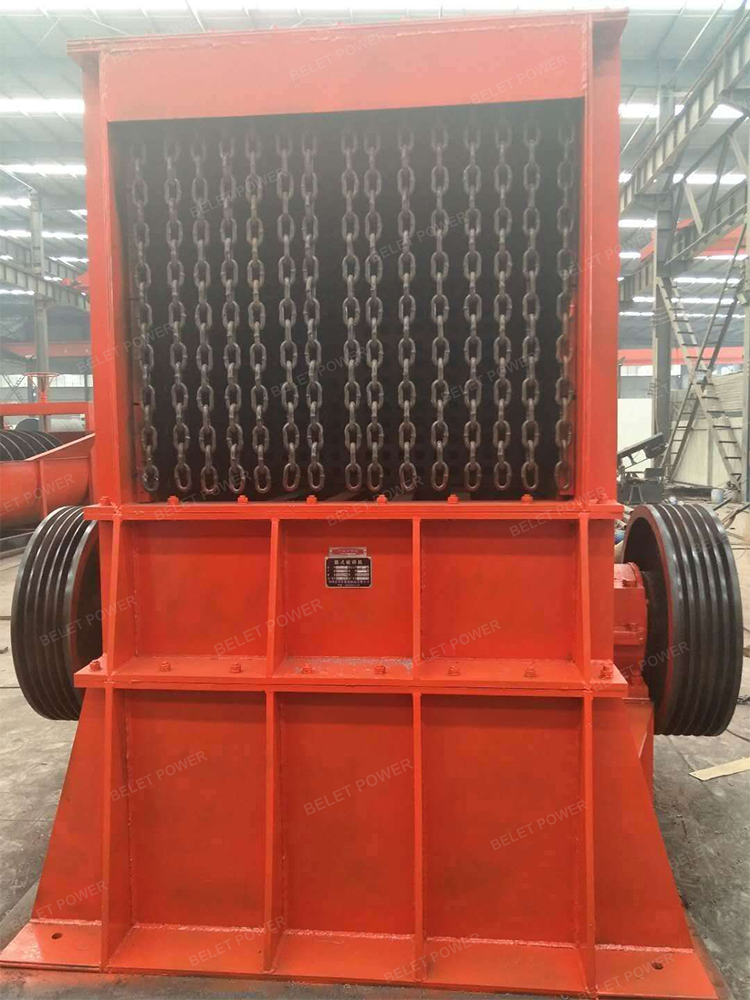

The feed inlet is equipped with anti-spray chains, preventing material splashing and improving operational safety. The rotor assembly features high-inertia balance design, paired with wear-resistant high-chromium hammer heads, delivering long service life and low failure rates.

Uniform Cubic Product & Adjustable Discharge Size

The multi-stage impact trajectory inside the crushing chamber ensures materials are crushed evenly, resulting in high-quality cubic aggregates with low flakiness.

The discharge size is easily adjustable by modifying the gap between the hammer head and the grate plate, meeting diverse production requirements from coarse to fine products.

Low Operating Cost & Easy Maintenance

The simplified structure minimizes the number of wearing parts, and the open-type inspection door allows quick access to internal components for routine checks and hammer head replacement.

Compared with traditional multi-stage crushing systems, it reduces maintenance time by over 50% and lowers overall power consumption by 20-30%.

Versatile Material Adaptability & Wide Applications

Designed to handle medium-hard and brittle materials such as limestone, granite, basalt, coal, construction waste, and ore slag, it performs reliably across quarries, mines, construction sites, and recycling plants.

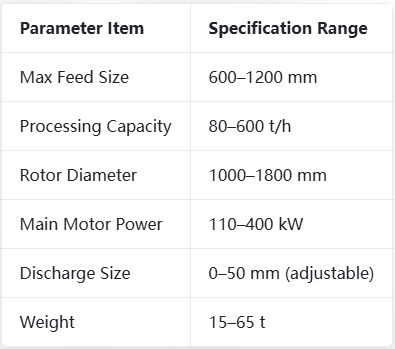

Technical Parameters：

Note: Custom configurations are available based on your material characteristics and production requirements.
