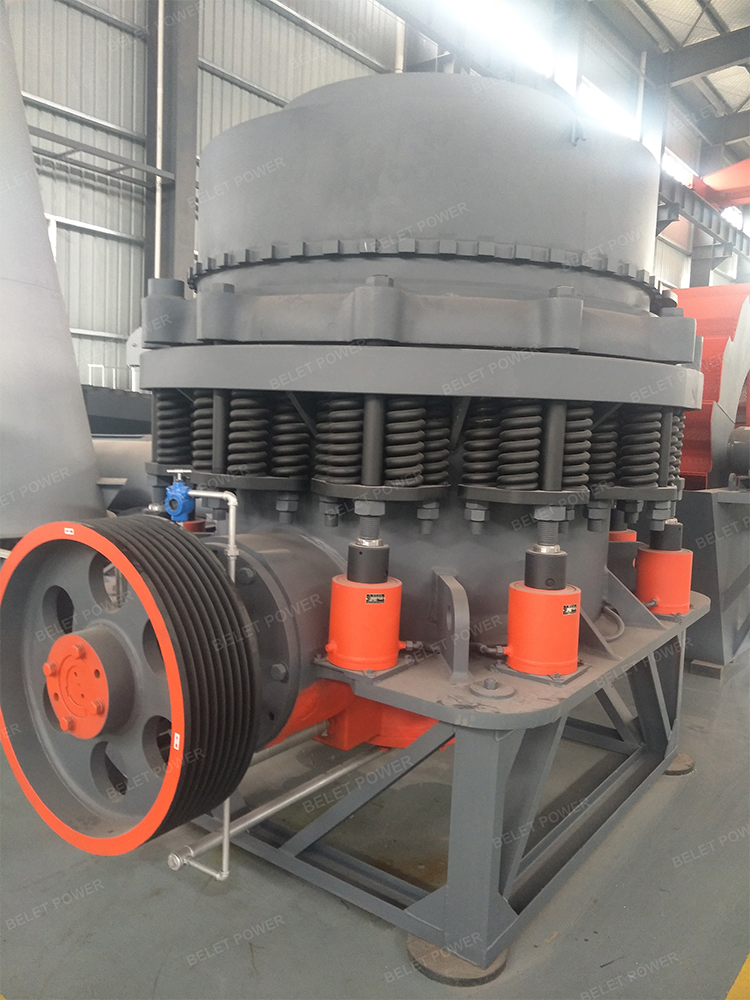

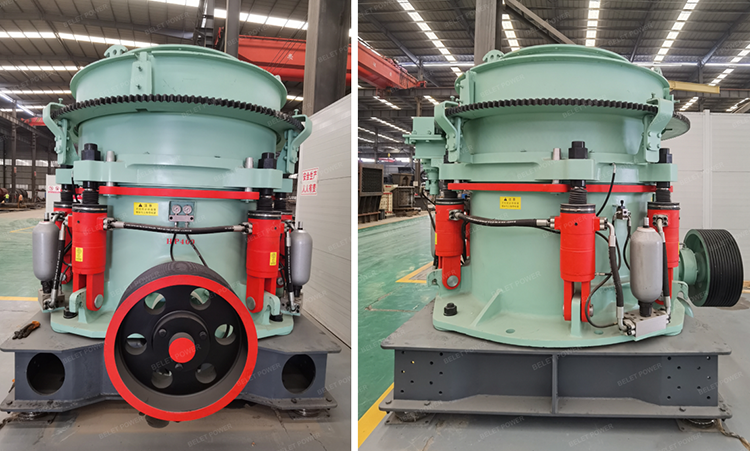

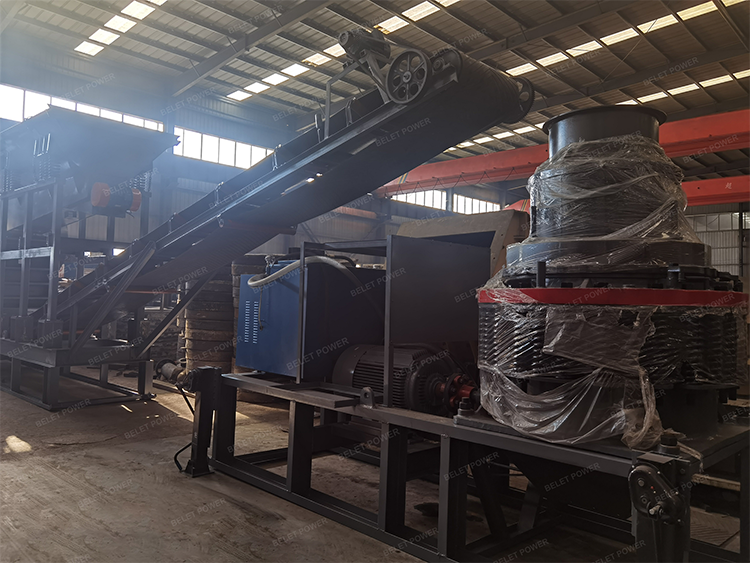

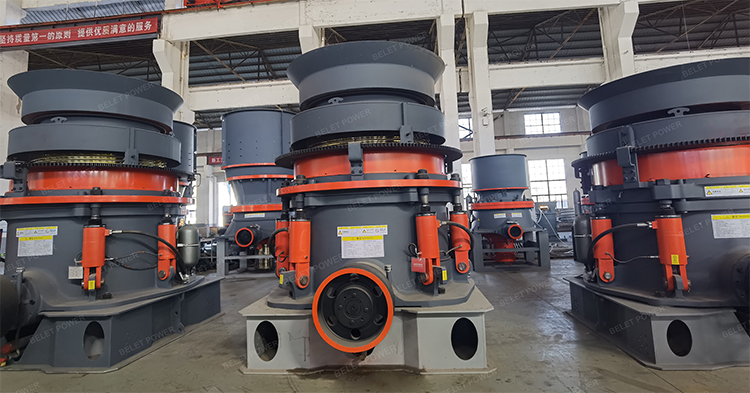

Hydraulic Cone Crusher
Cone Crusher is engineered for high-efficiency secondary and tertiary crushing in mining, quarrying, and aggregate production. Designed to handle hard, abrasive materials like granite, basalt, and iron ore, it delivers consistent, cubical end products while minimizing operational costs and maximizing uptime.
Core Technical Highlights:
Advanced Crushing Chamber Design & High Efficiency
The optimized multi-cavity crushing chamber and high-speed spindle design deliver superior inter-particle crushing, producing uniformly shaped, high-quality aggregates with minimal flakiness.

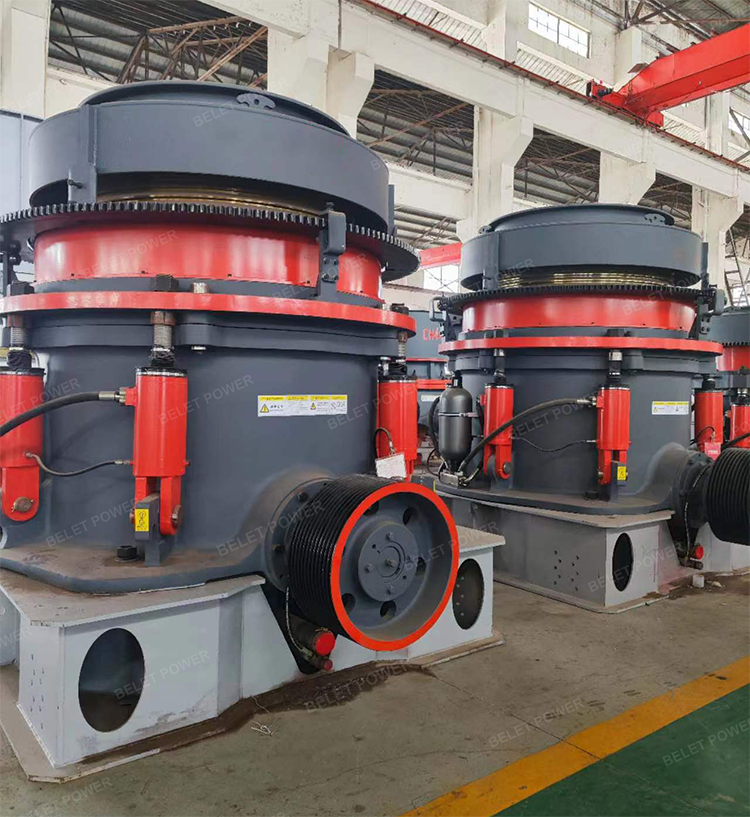

Hydraulic Adjustment & Overload Protection
Equipped with a hydraulic clearing system, the cone crusher automatically releases uncrushable materials to prevent jamming and protect internal components.
The hydraulic adjustment mechanism allows easy control of the discharge gap, enabling quick adaptation to different product size requirements without stopping production.
Robust Construction & Long Service Life
Built with heavy-duty cast steel frames and wear-resistant manganese steel liners, the crusher is engineered to withstand high-impact, high-load conditions. The use of high-quality bearings and precision-machined components ensures stable operation and extended service life, reducing maintenance frequency and costs.
Low Operating Cost & Easy Maintenance
The optimized lubrication system ensures consistent oil flow to critical parts, reducing wear and extending component life. The main components are easily accessible, and wear parts can be replaced quickly, minimizing downtime. The low power consumption per ton of material, combined with durable parts, significantly reduces long-term operational costs.
Versatile Application & Flexible Configuration
Suitable for processing a wide range of materials, from medium-hard to extremely hard rocks and ores. It can be configured with different crushing chambers to suit various applications: coarse crushing, medium crushing, fine crushing, and sand making.

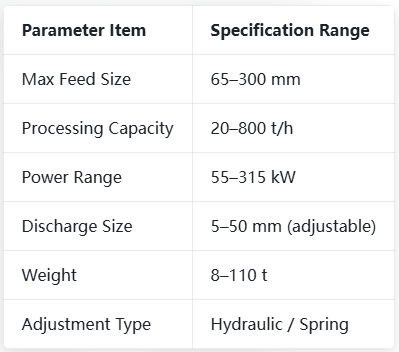

Typical Technical Parameters:
Note: Custom configurations are available based on your material characteristics and production requirements.
How It Works:
The cone crusher operates on the principle of compression crushing. Inside the crusher, the main shaft is driven by the motor through a belt and gear system, causing the mantle (moving cone) to gyrate eccentrically within the stationary concave bowl liner.
As raw material enters the crushing chamber from the top, it is squeezed between the moving mantle and the fixed concave liner. The eccentric motion creates a continuous, cyclic compression force, crushing the material against the liner.
Once the material is reduced to the desired size, it falls through the narrow discharge gap at the bottom of the chamber. The process repeats with each gyration, ensuring uniform particle reduction and excellent cubical shape. The adjustable gap setting allows you to precisely control the final product size.
